Category | |
RF Communication of Bluetooth scanner | |

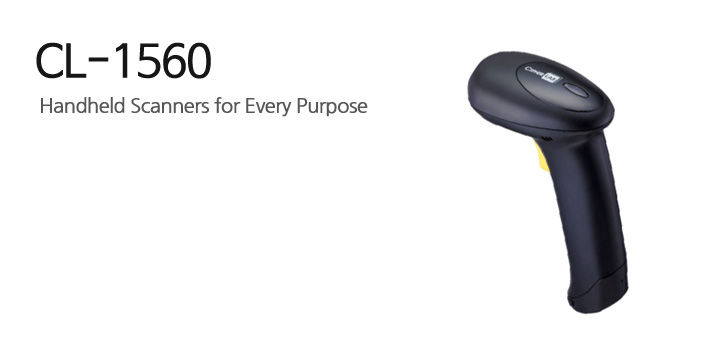

Bluetooth cordless | 1560 |
Module | Bluetooth Class 2 (2.4 GHz) Version 2.0 |
Coverage | 90 m1 / 295 ft. line of sight |
Standard profile | SPP, HID |
Performance | |
Optical sensor | 2500 pixels |
Light source | Red LED 625 nm (1560: Red LED 618-626 nm) |
Resolution | 3 mil |
Depth of field 13 mil barcode |
0.5 to 35 cm / 0.2 to 13.8 in.
(1500WA: long barcode 8.2 cm, 8 mil- 7.5 to 14.5cm / 3 to 5.7 in.) |
Scanning angle | Pitch ± 70° Skew ± 70° |
PCS | Minimum 30% |
Scan rate | 200 scans, decodes / second (1500WA: 100 scans / second) |
Ambient illumination | 100,000 lux |
Hands-free scanning | Auto-sense and continuous modes |
Barcodes support | Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, and more |
Programmable features | Data editing, interface selection, symbology configuration |
Language support | US and UK English, French, Italian, Belgian, Norwegian/Swedish, Spanish, Portuguese, German, Japanese and Turkish |
Physical | |
Dimension L x W x H | 15.3 x 6.1 x 9.3 cm / 6.0 x 2.4 x 3.7 in. |
Weight without cable / with batter |
145 g / 5.1 oz. (1560: 173 g / 6.1 oz.) |
Color | Black |
Switch | Tactile Switch |
Electrical | |
Memory for Bluetooth scanner reserver buffer / batch mode |
4 K / 512 K |
Working hours for Bluetooth scanner | 24 / 12 hours depending on the CCD Sensor mode setting (Always Active function disabled/ Always Active function enabled, default setting) |
Voltage | +5 V ±10% / 3.7 V 800 mAh Li-ion battery |
Power consumption3 Standby / Operating |
50 mA / 265 mA (1560: 45 mA / 270 mA) |
User Environment | |
Temperature | Operating: 0°C to 50°C / 32°F to 122°F Storage: -20°C to 60°C / -4°F to 140°F |
Humidit | Operating: 10% to 90% Storage: 5% to 95% |
Impact resistance | 1.5 m (4.9 ft) mutliple drops onto concrete (1560: 1.2 m (3.9 ft) mutliple drops onto concrete) |
Ingress protection | IP30 |
Electrostatic discharge | ±8 kV contact ±15 kV air |
EMC regulation | 1500: BSMI, CE, C-tick, FCC, IC, MIC 1500WA: BSMI, CE, C-tick, FCC, IC 1560: BSMI, CE, C-tick, FCC, IC, KCC, NCC, SRMC, TELEC |
Configuration | Setup options include Windows-based ScanMaster software, by direct connection or printing out barcode settings |
Accessories | USB, RS232 and keyboard wedge cables, Three-way desk/wall/auto-sense stand with optional weighted base, communucation stand for Bluetooth scanner provides Bluetooth communication for up to 7 scanners, single battery charger for Bluetooth scanner |
Warranty | 5 years (1560: 3 years) |
