| Physical Characteristics | |
| Dimensions: | 6.55 in. H x 4.72 in. L x 2.82 in. W 16.6 cm H x 11.9 cm L x 7.1 cm W |
| Weight | 6.4 oz. (182 g) |
| Voltage and Current | 5 +/-10%VDC @ 350 mA |

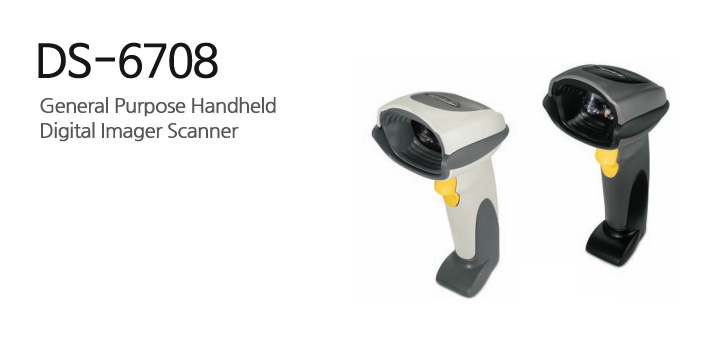

| Color | Cash Register White (shown) or Twilight Black |
| Physical Characteristics | |
| Light Source | Aiming: 650 nm laser diode |
| Illumination | 630 nm LED |
| Field of View | DL: 34° V x 43° H (Vertical x Horizontal) |
| Roll / Pitch / Yaw: DL | 360°, ±65°, ±60° |
| Symbology Decode Capability | |
| 1-D | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, Code 128, GS1DataBar (formerly UCC/EAN 128), Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 PDF417 (and Variants): PDF417, microPDF417 and composite codes Postal: U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch |
| 2-D | MaxiCode, DataMatrix (ECC 200), QR Code and Aztec Print Contrast: 25% minimum reflectance |
| Motion Tolerances | Horizontal velocity: 5 in. (12.7 cm) per second |
| Interfaces Supported | DS6708: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces; IBM 468x/469x and keyboard wedge |
| User Environment | |
| Sealing | IP41 (Water and Dust Resistant) |
| Operating Temperature | 32° to 122° F / 0° to 50° C |
| Storage Temperature | -40° to 158° F / -40° to 70° C |
| Humidity | 5% to 95%, non-condensing |
| Drop Specifications | Withstands multiple 6 ft. (1.8m) drops to concrete |
| Ambient Light Immunity | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. |
| Regulatory | |
| Electrical Safety | UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1 |
| Laser Safety | EN60825-1:1994 +A1: 2002 +A2 :2001, IEC60825-1, 21CFR1040.10 and 21CFR1040.11, CDRH Class II, IEC Class 2 |
| EMI/RFI | FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24; Medical electrical equipment: EN60601-1-2: 2002 |
| Environmental(Accessories) | Compliant with RoHS directive 2002/95/EEC Mounting Options Intellistand with adjustable height: 5–10 in. (12.7–25.4 cm) and adjustable angle: 0°–90° Desktop and wall-mount holders are also available. |
| Power Supplies | Power supplies are available for applications that don't supply power over the host cable. |
| Warranty | |
| Subject to the terms of Motorola's hardware warranty statement, the Symbol DS6707/8 handheld scanner products are warranted against defects in workmanship and materials for a period of five years from the date of shipment. For the complete Motorola hardware product warranty statement, go to: http://www.motorola.com/warranty |
|
