| PHYSICAL CHARACTERISTICS | ||||||||||
| Dimensions | 7.34 in. H x 4.82 in. W x 2.93 in. D 18.65 cm H x 12.25 cm W x 7.43 cm D |
|||||||||
| Weight | 14.6 oz. (414 gm) | |||||||||
| Battery | 2200 mAh lithium ion Battery | |||||||||
| Battery Charge time | Fully charged (100%) within 4.5 hours using an external power supply and up to ten hours using a USB cable | |||||||||
| Color | Twilight Black/Yellow | |||||||||
| PERFORMANCE CHARACTERISTICS | ||||||||||
| Light Source | aiming pattern: 650nm visible laser diode illumination: 630nm leD |
|||||||||
| Imager Field of View | Standard range Focus: 39.6° H x 25.7°V High Density Focus: 38.4° H x 24.9° V |
|||||||||
| roll/Pitch/Yaw | 360°, ±65°, ±60° | |||||||||
| Motion tolerance | Up to 60 in./sec. (1.52m/sec.) for 100% 13 mil UPC. Motion tolerance will vary depending on code type, scan distance and print quality. |
|||||||||
| SYMBOLOGY DECODE CAPABILITY | ||||||||||
| 1D Codes | UPC/eaN and with supplementals, Code 39, Code 39 Full aSCii, tri-optic Code 39, GS1 DataBar Variants, GS1-128, Code 128, Code 128 Full aSCii, Code 93, Codabar (NW1), interleaved 2 of 5, Discrete 2 of 5 MSi, Codell iata, Bookland eaN, Code 32 | |||||||||
| PDF417 (and Variants) |
PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-a, CC-B, CC-C) |
|||||||||
| 2D Codes | tlC-39, aztec (Standard, inverse), MaxiCode, DataMatrix/eCC 200 (Standard, inverse), Qr Code (Standard, inverse, Micro) |
|||||||||
| Posta | U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, australian Postal, Dutch Postal, 4 State Postal |
|||||||||
| DPM Marks (DPM unit only) |
Datamatrix marks applied by dot-peening. all supported barcode types listed above marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass | |||||||||
| iUiD Support | Supports iUiD parsing. the ability to read and separate iUiD fields per application requirements | |||||||||
| Nominal Working range |
See chart on back | |||||||||
| USER ENVIRONMENT | ||||||||||
| Operating Temp. | -4° F to 122° F/-20° C to 50° C | |||||||||
| Storage Temp. | -40° F to 158° F/-40° C to 70° C | |||||||||
| Humidity | 5% to 95% relative humidity, non-condensing | |||||||||
| Sealing | Sealed to iP65 specifications | |||||||||
| Drop Specifications | Unit functions normally after repeated 6.5 ft. (2 m) drops to concrete |
|||||||||
| Cradle insertions | 250,000+ insertions | |||||||||
| ambient light immunity |
indoor: 450 Ft Candles (4,842 lux) outdoor: 8,000 Ft Candles (86,080 lux) |
|||||||||
| electrostatic discharge (eSD) |
15 kV air discharge 8 kV contact discharge |
|||||||||
| Cradles |
|
|||||||||
| Power reqs. |
|
|||||||||
|
|
|||||||||
| RADIO SPECIFICATION | ||||||||||
| Radio | Bluetooth Class ii Version 2.1, Serial Port and HiD Profiles |
|||||||||
| Frequency | 2.402 to 2.480 GHz adaptive frequency hopping and co-existence with 802.11 wireless networks |
|||||||||
| Data rate | Basic Data rate is 720 kbps enhanced Data rate (eDr) for image transfer |
|||||||||
| Radio range | radio range: Up to 300 ft. (100m) direct line of sight in open air. typical indoor cordless range is 100 ft. (33m), but range will vary depending upon environment; see Bluetooth radio Performance technical Brief for more information | |||||||||
| INTERFACES | ||||||||||
| Interfaces Supported |
USB, rS-232, rS-485 (iBM 46xx Protocols) and Keyboard Wedge |
|||||||||
| REGULATORY | ||||||||||
| Electrical Safety | Ul60950-1, CSA C22.2 No. 60950-1, EN 60950-1 / IEC 60950-1 | |||||||||
| Laser Safety | eN 60825-1, ieC 60825-1, 21CFr1040.10, CDrH Class ii, ieC Class 2 |
|||||||||
| EMI/RF | FCC Part 15 Class B, iCeS-003 Class B, eN 55022, eN 55024, aS/NZS 4268:2008, Japan VCCi |
|||||||||
| ENVIRONMENTA | Compliant with roHS directive 2002/95/eeC | |||||||||
| OPTiOnS | ||||||||||
| ACCESSORIES | Holster (mounts to pants or belt); tool Balancer Pulley (tethered); Standard Cradle (Charge only); Standard Cradle (radio/ Charge); Fork-lift Cradle (Charge only); Fork-lift Cradle (radio/Charge) |
|||||||||

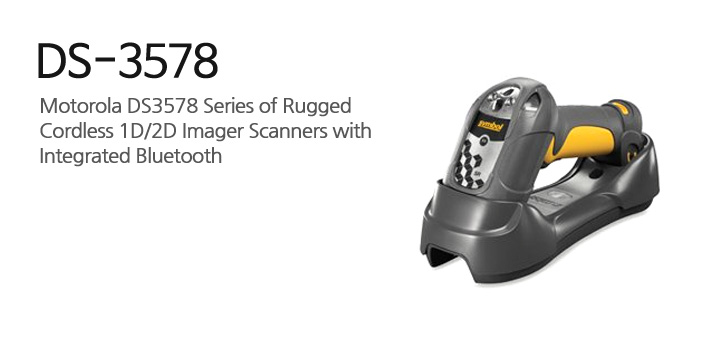

| WARRANTY | the Motorola DS3578 Series is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details. |
|||||||||
| RECOMMENDED SERVICES | Service from the Start advance exchange Support | |||||||||
| * Fast rate charge requires an external power supply. ** Cradle defaults to slow rate charge when an external supply is not used |
||||||||||
