Physical Characteristics | |
Dimensions | 6.7 in. H x 3.7 in. L x 2.7 in. W (17 cm H x 9.3 cm L x 6.8 cm W) |
Weight | (w/o cable) 6.1 oz. (172.9 g) |
Power | 5 VDC ± 10% @ 275 mA (RMS typical) |
PERFORMANCE CHARACTERISTICS | |
Light Source | Aiming pattern: 617 nm LED Illumination: 625 nm LEDs |
Imager Field of View | 39° (H) x 25° (V) |
Roll Pitch Yaw |
0 - 360° ± 65° or greater ± 60° or greater |
Print Contrast | 25% minimum reflective difference |
SYMBOLOGY DECODE CAPABILITY | |
1D | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
2D | PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Postal Australian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3), Canadian Post (Postbar) |
Motion Tolerances | Up to 25 in. / 63.5 cm per second |
Interfaces Supported | The scanner supports the following protocols over USB: HID Keyboard (default mode), SNAPI, COM Port Emulation, IBM SurePOS (Yellowstone) (IBM Handheld,IBM Tabletop, OPOS); The scanner supports the following protocols over RS232: Standard, Wincor Nixdorf, ICL, Fujitsu, Olivetti, Keyboard Wedge and RS-485 IBM46xx |
Minimum Resolution | -SR: Code 39 4 mil; UPC 60% 5 mil; PDF417 5 mil, Datamatrix 7.5 mil -HD: Code 39 3 mil; UPC 60% 5 mil; PDF417 4 mil, Datamatrix 5 mil |
USER ENVIRONMENT | |
Operating Temp. | 32° F to 104° F (0° C to 40° C) |
Storage Temp. | -40° F to 158° F (-40° C to 70° C) |
Humidity | 5% to 95%, non-condensing |
Drop Spec | Withstands multiple 6 ft. (1.83 m) drops to concrete |
Ambient Light Immunity |
Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux. |
ACCESSORIES | |
Hands-Free Options | Gooseneck Intellistand |
Power Supplies | Power supplies are available for applications that do not supply power over the host cable |
REGULATORY | |
Electrical Safety | UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. |
LED Safety | IEC/EN60825-1:2001, IEC/EN62471:2006 |
EMI/RFI | FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024 |
Environmental | Compliant with RoHS directive 2002/95/EEC |
WARRANTY | |

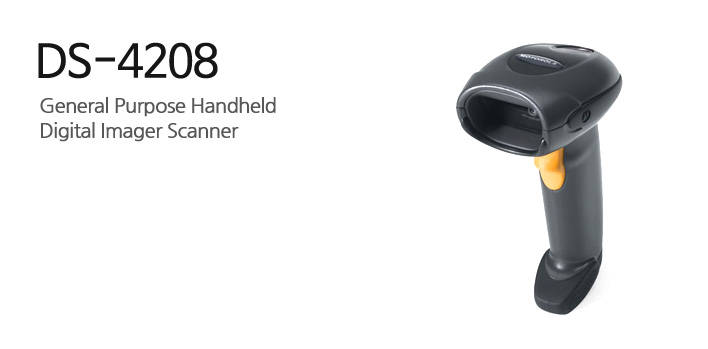

Subject to the terms of Motorola's hardware warranty statement, the DS4208 is warranted against defects in workmanship and materials for a period of 5 years from the date of shipment. For the complete Motorola hardware product warranty statement, go to: http://www.motorolasolutions.com/warranty |
|
RECOMMENDED SERVICES | |
Support Services | Service from the Start Advance Exchange Support |
