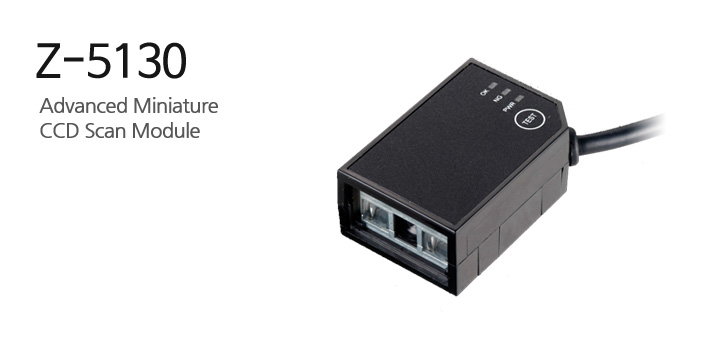

  • Z-5130 has ZEBEX specially designed CCD scan engine with light beam bright and clear as laser beam that gives user best visual indication and its powerful high resolution CCD acts in outstanding performance. The Z-5130 has all the flexibility and future upgradeability, and it is certainly the greatest choice for embedded products. Gaming machines, lottery machines, handheld terminals and many more compact applications are now on your hand.
  • World's smallest CCD scan module in its class
  • A "test" button on top for performance testing
  • Small size and preserved mounting holes for easy installation
  • Great CCD scanning performance and future upgradeability on firmware
  • Industrial standard design
  • Best for embedded applications, kiosks, lottery machine, and others where space is limited
  • Proprietary Ultrascan decoding technology

Specification

OPERATIONAL
Light Source 617 nm visible red LED; bright laser-imitated scanning line
Light Source 617 nm visible red LED; bright laser-imitated scanning line
Optical System Linear CCD array
Microprocessor 32 bit
Depth of Field 4 mil: 50 – 115 mm
5 mil: 50 – 150 mm
7.5 mil: 50 – 210 mm
10 mil: 50 – 250 mm
13 mil: 50 – 320 mm
20 mil: 50 – 380 mm
Scan Angle 43°
Scan Rate 330 scans per second
Print Contrast 30% @ UPC/EAN 100%
Indicator “OK”, “NG”, “PWR” and “TEST” button
Beeper Operation Programmable tone & beep time
System Interface RS-232, HID USB, USB Virtual COM, OPOS, JPOS
PHYSICAL
Dimension 39.0 × 26.6 × 15.8 mm
Weight 15 g (cable excluded)
POWER
Input Voltage 5 VDC ±10%
Operating Current 120 mA typical
REGULATORY
EMC CE & FCC DOC compliance, VCCI, BSMI
ENVIRONMENTAL
Operating Temperature 0°C – 50°C (32°F – 122°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (non-condensing)
Light Level 0 – 100, 000 Lux
DECODING CAPABILITY
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
