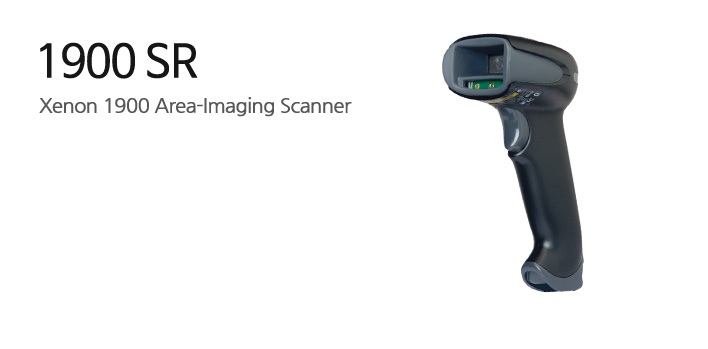

HOME > 제품소개 > 스캐너 > Xenon 1900 SR
  • Custom sensor optimized for bar code scanning improves scanning aggressiveness and protects investment by providing supply chain stability
  • Three focal options (high density, standard range and extended range) provide application-specific scanning, leading to improved productivity
  • Image processing software offers advanced editing functionality—cropping, brightening, rotating, sharpening and more—to produce high-quality digital images
  • TotalFreedom® 2.0 development platform enables the loading and linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications
  • Remote MasterMind® scanner management software provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
  • Optional disinfectant-ready housing protects investment with durable construction that is better able to resist the harmful effects of harsh chemicals
  • Reads standard 1D, PDF, 2D, Postal and OCR symbologies. *Decode capabilities dependent upon kit configuration

Specification

Mechanical
Dimensions
 (LxWxH) 104 mm x 71 mm x 160 mm (4.1˝ x 2.8˝ x 6.3˝)
Weight 147 g (5.2 oz)
Electrical
Input Voltage 4 VDC to 5.5 VDC
Operating Power 2.3 W (450mA @ 5 VDC)
Standby Power 0.45 W (90mA @ 5 VDC)
Host System Interfaces USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 50 1.8 m (6´) drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4´) drops to concrete on each of the faces
Environmental Sealing IP41
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Ratchet Cycles The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either up or down)
without losing its ability to keep the scanner in any ratchet position
Scan Performance
Scan Pattern Area Image (838 x 640 pixel array)
Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle HD Focus: Horizontal 41.4°; Vertical: 32.2°
SR Focus: Horizontal: 42.4°; Vertical: 33°
ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45°, 65°
Decode Capability Reads standard 1D, PDF, 2D, Postal and OCR symbologies
*Note: Decode capabilities dependent on kit configuration
Warranty 5 year factory warranty
